Vertical Bucket Elevator

Brand :Cafu

Product origin :China

CAFU Machinery's Bucket Elevator with high-cost performance is a commonly used material conveying equipment, which is widely used in various industries, especially when lifting large granular materials. The Bucket Elevator is mainly divided into five types: TD, TH, TDG, NE and NSE.

We customize the bucket elevator to fit your needs.

Customized Bucket Elevator

bucket elevator conveyor

1. Main features of TDG steel wire rope core conveyor belt bucket elevator

TDG type high efficiency bucket elevator is a new type product designed and manufactured by introducing the world advanced technology. It can meet the market demand for a new high-efficiency bucket elevator with large conveying capacity, large lifting height and compact structure.

◆TDG type is a series of products. There are a total of 11 specifications for bucket width from 250 to 1600. The maximum conveying capacity is 1325m3/h, and the maximum lifting height is less than 100 meters. Please refer to the technical parameter table for the conveying capacity of the bucket elevator.

◆Technical Data Sheet

Bucket width
mm)

Single bucket capacity
L)

Hopper spacing
mm)

Drum diameter
mm)

Belt speed
m/s)

Throughput(m3/H)

Lifting height
M)

φ=100%

φ=75%

250

5.5

280

630

1.34

94

70

≦100

315

6.9

118

88

400

14.4

320

800

1.51

244

183

500

18.0

305

229

630

29.4

360

1000

1.68

494

370

800

37.3

626

469

1000

46.0

773

580

1000

58.0

400

1250

1.90

992

744

1250

72.7

1243

932

1400

99.5

440

1546

1159

1600

113.7

1767

1325

◇The TDG bucket elevator uses the tear-resistant steel cord conveyor belt as the traction part.

◇The head, tail and middle casing of this machine are effectively sealed.

◇This bucket elevator is a centrifugal unloading and pick-up loading.

◇Vertical shaft reducer and hydraulic coupling are used in the transmission device.

◇A slow-acting device for equipment maintenance is set in the transmission device.

◇The lower tension device of the machine adopts a balanced screw structure.

◇The lower part of the machine is equipped with a level gauge and a speed sensor to alarm for abnormalities.

◇The drive device of the steel wire belt bucket elevator is composed of a motor, a vertical shaft reducer, a hydraulic coupling, a backstop device, and a slow moving device. For detailed product technical parameters, please ask our engineers.


2. Features of NE series plate chain bucket elevator

NE Plate Chain Bucket Elevator is a product developed by the introduction of advanced technology, it is a plate chain type, gravity induced discharge elevator equipment. The machine adopts inflow feeding, the material flows into the hopper, lifts to the top by plate chain, and discharges itself under the effect of material gravity.

◇Wide lifting range: it can lift powder, granular and block materials with a temperature of <250°C.

◇Large conveying capacity: the lifting capacity ranges from 15 to 800 m3/h.

bucket elevator

◇Long service life: The service life of the conveyor chain exceeds 5 years.

◇Small driving power: low chain speed and large lift.

◇High lifting height: The chain speed is low, the operation is stable, and the plate chain type high-strength wear-resistant chain is used, so it can reach a higher lifting height (up to 45m).

◇Good airtightness and less environmental pollution.

◇Good operational reliability: Advanced design principles ensure the reliability of the whole machine. The trouble-free time exceeds 30,000 hours.

◇Easy to operate and maintain, with few wearing parts.

◇The whole machine has good rigidity and high precision.

◇Low cost of use: Due to energy saving and less maintenance, the cost of use is lower.


3. Features of NSE series high-speed plate chain bucket elevator

NSE type high-speed plate chain bucket elevator is a new type of vertical lifting equipment, is in the NE elevator on the basis of the design transformation, transformation in the lifting height and conveying capacity are greater than the same type of NE series elevator.

◇Large conveying capacity: the lifting capacity is 100~1000m3/h.

◇Small driving power: 30% less power than chain hoist.

◇Long service life: Under normal use, the service life of the conveyor chain exceeds 3 years.

◇High lifting height: under the rated conveying capacity, it can be lifted ≤50 meters.

◇Wide lifting range: It can lift general powder materials, small granular materials and materials whose temperature is ≤200℃.

◇Good operational reliability: the trouble-free time exceeds 20,000 hours.

◇Good airtightness: less environmental pollution.

◇Low overall cost: Due to energy saving and less maintenance, the use cost is low.

 bucket conveyor

◆We customize bucket elevator conveyors for many international customers.Our bucket elevator has a wide range of applications in industries and scenarios such as construction material handling, mining, environmental protection and waste disposal.

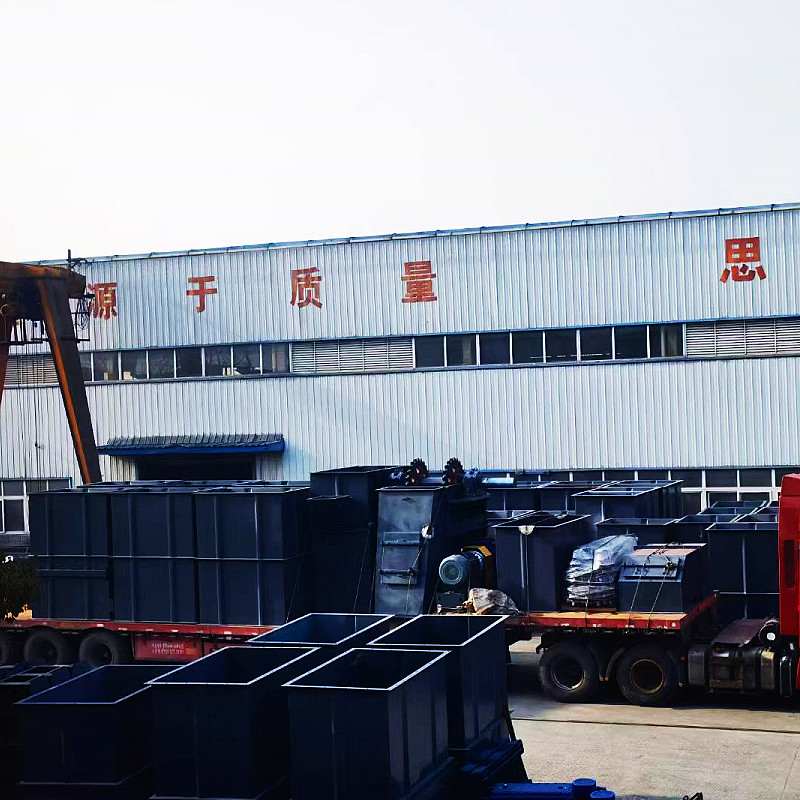

bucket elevator conveyor

For detailed technical specifications of the bucket conveyor, please contact our sales staff.

FAQ
What data need to be provided in the custom design of fabricated steel silo?
Customized design of general fabricated steel silo needs to provide: 1. Storage material name 2. Density of storage material 3. Storage material particle size 4. Storage capacity 5. Feeding method 6. Discharge method and size of discharge port 7. The height of the discharge port from the ground...more
